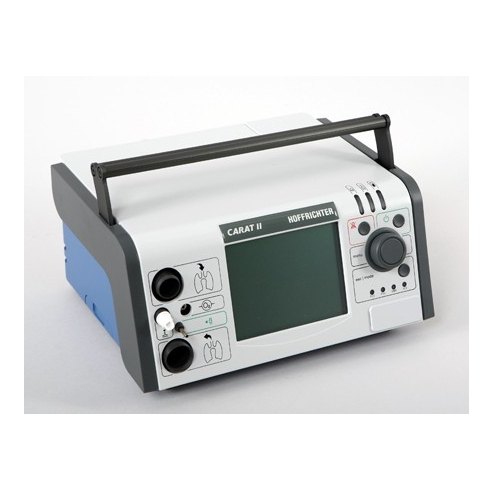

The wide, clear display guides the user comfortable through the different ventilation modes and their adaptation to the individual needs of the patients. The powerful, performance-optimized blower offers high flow reserves even at maximum therapy pressure and attracts attention by an extraordinary silent operation noise. So nothing is left to be desired even with a use at home. The internal high capacity rechargeable batteries provide energy reserves for intra- or extra-clinical transport, outdoor stays or for overcoming faults of the electrical power supply. Whether as a one tube or a two-tube system, so whether as CARAT I pro or CARAT II pro, in invasive or non-invasive ventilation, this system is the always safe choice.

KEY HIGHLIGHTS

·      User friendly for both patient and operator.

·      Also supports for Kids.

·      Hospital ICU, home and clinic use ventilator

·      Have been tested and certified to be used for COVID-19 patients

·      4 hours of internal battery backup with extendable external battery option

·      Extremely silent turbine-based working

·      Plug & play functionality extremely easy to setup and use

·      Advances technology with customised monitoring

CERTIFICATION & QUALITY

·      CE Certified

·      TUV Rhineland Certified

·      Recommended by hospitals

·      Approved and tested by government institutions and hospitals

·      Years of field testing

·      3-year Guarantee and over 10 year life

·      Authorized service center in India

·      Made in Germany with 100 percent Quality

·      On site service support

SALES PACKAGE

·      SD memory card

·      Valve tube system

·      Switched-mode power supply

·      Mains cable

·      Complete replacement filter cartridge

·      Pack of 2 coarse filters

·      Pack of 5 fine filters

·      O2 connection adapter

·      Adapter for bacteria filter

·      Carrying case

SPECIFICATION

• Dimensions(w x d x h):304 mm x 253 mm x 160 mm
• Weight: 4.72 kg
• Operating voltage:100 V – 240 V AC, 50 – 60 Hz or 12 V DC / 10 A or 24V DC / 5 A
• Max. inspiratory pressure: 50 hPa
• PEEP pressure range:0 – 20 hPa
• Min. tidal volume: 50 ml
• Respiratory rate: 4 – 50 bpm
• Pressure-controlled modes: PCV / APCV / PSV / PSV-S / P-SIMV
• Volume-controlled modes: VCV / AVCV / V-SIMV
• Internal battery: Lithium-ion battery; 14.8 V (nominal voltage) / 4.4 Ah / 65.12 Wh battery capacity approx. 4 h (with factory default settings)
